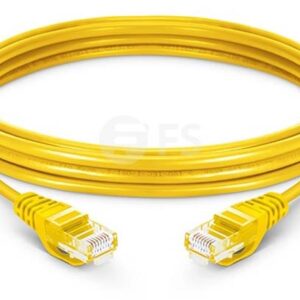

STRONGLINK PLC605BL
PATCH LEAD CAT6 UTP 0.5M BU
Reviews
Specifications
| MECHANICAL SPECIFICATIONS | |
| Plug insertion durability: | ≥ 750 mating cycles |
| Cable to plug tensile strength: | ≥ 89 N |
| ELECTRICAL SPECIFICATIONS | |
| Plug insulation resistance: | ≥ 500MΩ |
| Plug contact resistance: | ≤ 10 mΩ |
| Plug DC resistance: | ≤ 0.1Ω |
| Plug current rating: | ≥ 1.5 A |
| Plug dielectric withstanding voltage: | ≥ 1KV RMS |
| PHYSICAL SPECIFICATIONS | |
| Cable diameter: | 5.4 mm ± 0.2mm |
| Cable conductor: | 24 AWG stranded bare copper wire |
| Cable sheath: | CM grade PVC |
| Plug: | Meets FCC part 68 and IEC 603-7 |
| Plug/ boot material: | Plug flame retardant plastic, UL94V-O; boot PVC |
| Plug contacts: | Phosphor bronze with 50μ inches gold over nickel plating |
| Operating temperature range: | -10°C to 60° C |
Measurements
