Specifications

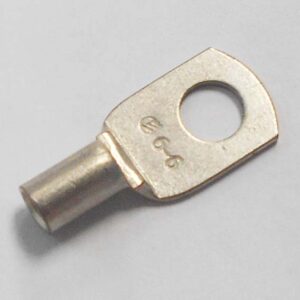

Copper Lug 120mm2 Cable 10mm Stud

• Made from high conductivity annealed Copper
• Crimped with CABAC and MSS Power standard tooling and dies
• Complies with AS4325.1
• General purpose crimp lugs

Product Description

Copper Crimp Lug – Standard Range

CABAC copper crimp lugs are made from 99.9% + cu high conductivity annealed copper which gives the best electrical properties possible.

It is our recommendation that CABAC copper crimp lugs should be crimped with standard Australian tooling.

Conformant Standards
AS4325 Part 1 Australia; IEC France, DIN/VDE Germany, JIS Japan, BS United Kingdom and NEMA USA
Test reports are available on request

Technical Information

Conductive Material
Copper 99.95% pure
Oxygen content 30 p.p.m Max.
Tensile strength 200 MPa
Ductile rating 40%
Final metal state fully annealed

Electroplating Material
Tin 99.9% pure
Other metals lead + antimony
Thickness 5 -10 microns

Dimensional Specification
Tooling is interchangeable between CABAC, Utilux and Burndy

General Electrical Properties
Total conductivity 99.7% IACS
Total resistivity: 1.738 micro-ohm cm

Accepting Authorities
Electricity Services Victoria, Energy Australia, Rail Services Australia, Energex, Western Power, Ergon, Integral Energy, Country Energy, Powercor and many other recognised authorities

Torque Recommendations
Recommended torques for hardware should be to Australian and New Zealand Standards
Thread dia.(mm) / Torque (Nm)
5 / 5
6 / 9
8 / 22
10 / 44
12 / 77
16 / 190

Specifications

Nominal Conductor (mm2): 120
Stranding No./Dia.: 37/2.03
ID Size (mm): 15.6
Stud (mm): 10

Measurements
