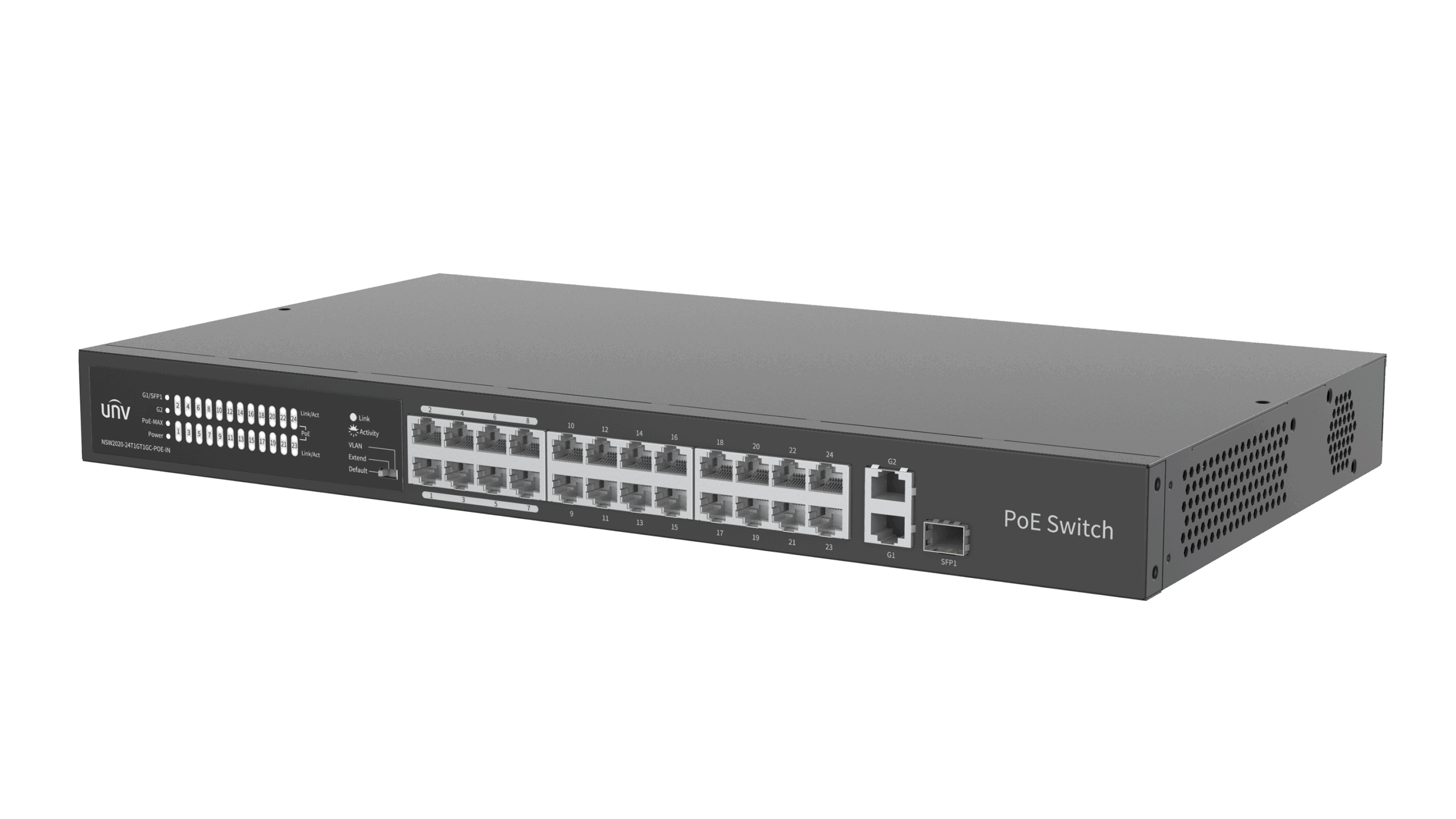

UNIVIEW NSW2020-24T1GT1GC-POE
CCTV UNMANAGED ETHERNET SWITCH
Reviews
Specifications
| Hardware Specification | ||||||||
| Ports Type | 24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az | |||||||
| Switching capacity | 8.8 Gbps | |||||||
| Forwarding performance | 6.55Mpps | |||||||
| Packet Buffer | 4 M bit | |||||||
| MAC | 16K | |||||||
| Max. PoE Power | Max capacity: 370 W, Max capacity for single port: 30 W | |||||||
| Prior Ports | 1 to 8 | |||||||
| Indicator | POWER Steady on: AC input is normal, POWER Off: No AC input, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data | |||||||
| Power supply | AC: 100-240 V, 50/60 Hz | |||||||
| Max.Power | 390W | |||||||
| Storage Temperature | -40 ℃ to 70 ℃ | |||||||
| Operating temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) | |||||||
| Cooling Fans | 1 | |||||||
| Mean Time Between Failure (MTBF) | > 50000 hours | |||||||
| Dimensions (W×D×H) | 440*250*44mm | |||||||
| Weight | 2.93KG | |||||||
| Storage humidity | 5%～90% (non-condensing) | |||||||
| Operating humidity | 10%～90% (non-condensing) | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports | |||||||
| Hardware Specification | ||||||||
| PoE Mode | 802.3at/af , ModeB(4/5+, 7/8-) | |||||||
